PART NO.

規(guī)格/編碼

ITEM NO.

品名型號

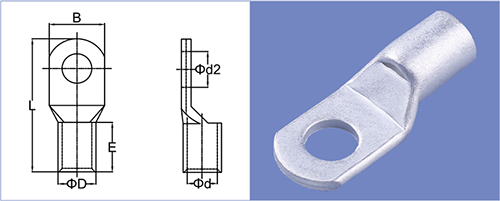

尺寸DIMENSIONS(mm)

Φd 2

B

L

ΦD

Φd

E

SCXB1.5M4

SCXB1.5-4

4.3

8

16.5

4

2.2

5

SCXB1.5M5

SCXB1.5-5

5.3

8

16.5

SCXB2.5M4

SCXB2.5-4

4.3

8

19

4.5

2.9

7

SCXB2.5M5

SCXB2.5-5

5.3

8

21

SCXB2.5M6

SCXB2.5-6

6.4

10

21

SCXB2.5M8

SCXB2.5-8

8.4

13

23

SCXB4M4

SCXB4-4

4.3

10

21

5.2

3.6

7

SCXB4M5

SCXB4-5

5.3

10

21

SCXB4M6

SCXB4-6

6.4

10

21

SCXB4M8

SCXB4-8

8.4

13

24

SCXB6M4

SCXB6-4

4.3

10

23

6

4.2

9

SCXB6M5

SCXB6-5

5.3

10

23

SCXB6M6

SCXB6-6

6.4

10

26

SCXB6M8

SCXB6-8

8.4

12

26

SCXB6M10

SCXB6-10

10.5

16

34

SCXB10M5

SCXB10-5

5.3

12.4

27

7

5

9

SCXB10M6

SCXB10-6

6.4

12.4

27

SCXB10M8

SCXB10-8

8.4

12.4

28

SCXB10M10

SCXB10-10

10.5

18

34.5

SCXB10M12

SCXB10-12

13

18.5

39.5

SCXB16M4

SCXB16-4

4.3

12.4

31

7.8

5.8

12

SCXB16M5

SCXB16-5

5.3

12.4

31

SCXB16M6

SCXB16-6

6.4

12.4

31

SCXB16M8

SCXB16-8

8.4

12.4

31

SCXB16M10

SCXB16-10

10.5

16

34

SCXB16M12

SCXB16-12

13

19.5

42

SCXB25M5

SCXB25-5

5.3

14

32

9.5

7.5

12

SCXB25M6

SCXB25-6

6.4

14

32

SCXB25M8

SCXB25-8

8.4

18

34

SCXB25M10

SCXB25-10

10.5

17.5

37

SCXB25M12

SCXB25-12

13

20.5

45

SCXB35M6

SCXB35-6

6.4

16.5

38

11.4

8.6

15

SCXB35M8

SCXB35-8

8.4

16.5

38

SCXB35M10

SCXB35-10

10.5

17.5

41

SCXB35M12

SCXB35-12

13

18

47.5

SCXB50M6

SCXB50-6

6.4

18

43.5

12.6

9.6

16

SCXB50M8

SCXB50-8

8.4

18

44

SCXB50M10

SCXB50-10

10.5

18

44

SCXB50M12

SCXB50-12

13

18

44

SCXB50M14

SCXB50-14

15

25

55.5

SCXB50M16

SCXB50-16

17

26

60

SCXB70M6

SCXB70-6

6.4

21.8

50

15

12

18

SCXB70M8

SCXB70-8

8.4

21.8

50

SCXB70M10

SCXB70-10

10.5

21.8

50

SCXB70M12

SCXB70-12

13

21.8

50

PART NO.

規(guī)格/編碼

ITEM NO.

品名型號

尺寸DIMENSIONS(mm)

Φd2

B

L

ΦD

Φd

E

SCXB70M14

SCXB70-14

15

21.8

59

15

12

18

SCXB70M16

SCXB70-16

17

26

63

SCXB95M5

SCXB95-5

5.3

25

55.5

17.4

13.5

20

SCXB95M6

SCXB95-6

6.4

25

55.5

SCXB95M8

SCXB95-8

8.4

25

55.5

SCXB95M10

SCXB95-10

10.5

25

55.5

SCXB95M12

SCXB95-12

13

25

55.5

SCXB95M14

SCXB95-14

15

25

65

SCXB95M16

SCXB95-16

17

27

69.5

SCXB95M20

SCXB95-20

21

29

77.5

SCXB120M8

SCXB120-8

8.4

28.4

60

19.8

15

22

SCXB120M10

SCXB120-10

10.5

28.4

60

SCXB120M12

SCXB120-12

13

28.4

60

SCXB120M14

SCXB120-14

15

28.4

64

SCXB120M16

SCXB120-16

17

28.4

64

SCXB150M6

SCXB150-6

6.4

30.5

69

21.2

16.5

26

SCXB150M8

SCXB150-8

8.4

30.5

69

SCXB150M10

SCXB150-10

10.5

30.5

69

SCXB150M12

SCXB150-12

13

30.5

69

SCXB150M14

SCXB150-14

15

30.5

69

SCXB150M16

SCXB150-16

17

30.5

69

SCXB150M20

SCXB150-20

21

30.5

69

SCXB185M10

SCXB185-10

10.5

34

78

23.5

18.5

32

SCXB185M12

SCXB185-12

13

34

78

SCXB185M14

SCXB185-14

15

34

78

SCXB185M16

SCXB185-16

17

34

78

SCXB185M20

SCXB185-20

21

34

78

SCXB240M10

SCXB240-10

10.5

38.5

92

26.5

21.5

38

SCXB240M12

SCXB240-12

13

38.5

92

SCXB240M14

SCXB240-14

15

38.5

92

SCXB240M16

SCXB240-16

17

38.5

92

SCXB240M20

SCXB240-20

21

38.5

92

SCXB300M12

SCXB300-12

13

43

101

30

23.5

42

SCXB300M14

SCXB300-14

15

43

101

SCXB300M16

SCXB300-16

17

43

101

SCXB300M18

SCXB300-18

19

43

101

SCXB300M20

SCXB300-20

21

43

101

SCXB400M12

SCXB400-12

13

52

114

36.5

28.5

44

SCXB400M16

SCXB400-16

17

52

114

SCXB400M18

SCXB400-18

19

52

114

SCXB400M20

SCXB400-20

21

52

114

SCXB500M16

SCXB500-16

17

56

124

39

30.5

48

SCXB500M18

SCXB500-18

19

56

124

SCXB500M20

SCXB500-20

21

56

124

SCXB600M20

SCXB600-20

21

65

144

55

45

56
