PART NO.

規(guī)格/編碼

ITEM NO.

品名型號

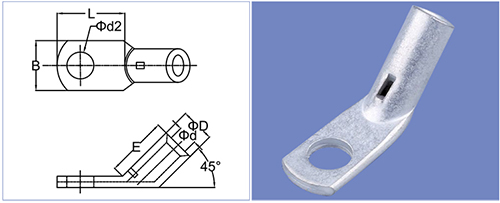

尺寸DIMENSIONS(mm)

Φd 2

B

L

ΦD

Φd

E

LYF10M6D45

LYF45°10-6

6.5

13

18

8

5

19

LYF10M8D45

LYF45°10-8

8.4

13.5

20.5

8

5

19

LYF16M6D45

LYF45°16-6

6.5

13

18

9

6

23

LYF16M8D45

LYF45°16-8

8.4

13.5

20.5

9

6

23

LYF25M6D45

LYF45°25-6

6.5

16

18

11

8

24

LYF25M8D45

LYF45°25-8

8.4

16

20.5

11

8

24

LYF25M10D45

LYF45°25-10

10.5

17

25

11

8

24

LYF35M6D45

LYF45°35-6

6.5

18

18

13

9

30

LYF35M8D45

LYF45°35-8

8.4

18

20.5

13

9

30

LYF35M10D45

LYF45°35-10

10.5

18

25

13

9

30

LYF50M8D45

LYF45°50-8

8.4

21

26

14.5

11

31

LYF50M10D45

LYF45°50-10

10.5

21

30

14.5

11

31

LYF50M12D45

LYF45°50-12

13

21

32

14.5

11

31

LYF70M8D45

LYF45°70-8

8.4

25

26

17

13

35

LYF70M10D45

LYF45°70-10

10.5

25

30

17

13

35

LYF70M12D45

LYF45°70-12

13

25

32

17

13

35

LYF95M10D45

LYF45°95-10

10.5

29

30

20

15

40

LYF95M12D45

LYF45°95-12

13

29

32

20

15

40

LYF95M16D45

LYF45°95-16

17

29

36

20

15

40

LYF120M10D45

LYF45°120-10

10.5

32

30

22

17

43

LYF120M12D45

LYF45°120-12

13

32

32

22

17

43

LYF120M16D45

LYF45°120-16

17

32

36

22

17

43
