PART NO. 規(guī)格/編碼 |
I品TE名M型N號O. |
MATERIAL 材 質(zhì) |

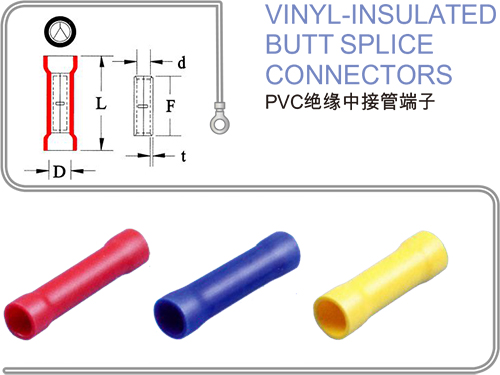

尺寸DIMENSIONS(mm) |
WIRE RANGE 電線范圍 A .W.G.mm2 |
|||||
|
BUTTED SEAM 不焊接 |
|||||||||
|
D |
d |
L |
F |
t |
|||||
|
VB1.25S |
VB1.25S |
COPPER PLATE銅板 |
4.00 |
1.85 |
24 |
15 |
0.50 |
22-16A.W.G. 0.5-1.5mm2 |
|
|
VB1.25M |
VB1.25M |
COPPER PLATE銅板 |
4.30 |
2.05 |
0.65 |
||||
|
VB1.25 |
VB1.25 |
COPPER PLATE銅板 |
1.90 |
0.75 |
|||||
|
VB1.25T |
VB1.25T |
COPPER TUBULAR銅管 |
1.85 |
||||||
|
VB2S |
VB2S |
COPPER PLATE銅板 |
2.40 |
0.50 |
16-14A.W.G. 1.5-2.5mm2 |
||||
|
VB2M |
VB2M |
COPPER PLATE銅板 |
4.50 |
2.75 |
0.65 |
||||
|
VB2 |
VB2 |
COPPER PLATE銅板 |
2.50 |
0.80 |
|||||
|
VB2T |
VB2T |
COPPER TUBULAR銅管 |
2.50 |
||||||
|
VB5.5S |
VB5.5S |
COPPER PLATE銅板 |
6.30 |
4.00 |
25.5 |
0.50 |
12-10A.W.G. 4-6mm2 |
||
|
VB5.5M |
VB5.5M |
COPPER PLATE銅板 |
6.50 |
4.05 |
27 |
0.75 |
|||
|
VB5.5 |
VB5.5 |
COPPER PLATE銅板 |
3.60 |
1.00 |
|||||
|
VB5.5T |
VB5.5T |
COPPER TUBULAR銅管 |
3.60 |
1.00 |
|||||
|
VB8T |
VB8T |
COPPER TUBULAR銅管 |
7.00 |
4.50 |
33.0 |
21.0 |
1.25 |
8A.W.G. 8mm2 |
|
|
VB8ST |
VB8ST |
COPPER TUBULAR銅管 |
6.80 |
4.50 |
41.0 |
30.0 |
0.85 |
||
|
VB14T |
VB14T |
COPPER TUBULAR銅管 |
10.40 |
6.40 |
48.0 |
27.5 |
1.30 |
6A.W.G. 14mm2 |
|
|
VB14ST |
VB14ST |
COPPER TUBULAR銅管 |
10.00 |
5.80 |
40.0 |
30.0 |
1.00 |
||
|
VB22T |
VB22T |
COPPER TUBULAR銅管 |
13.00 |
8.20 |
41.0 |
30.5 |
1.55 |
4A.W.G. 22mm2 |
|
|
VB22ST |
VB22ST |
COPPER TUBULAR銅管 |
12 |
7.50 |
50.0 |
30.0 |
1.00 |
||
|
VB38T |
VB38T |
COPPER TUBULAR銅管 |
14.10 |
10.10 |
45.5 |
33.5 |
1.60 |
2A.W.G. 38mm2 |
|
|
VB38ST |
VB38ST |
COPPER TUBULAR銅管 |
14.10 |
9.60 |
45.5 |
33.5 |
1.50 |
||
