0755-2878945613380359332
|
PART NO. 規(guī)格/編碼 |
ITEM NO. 品名型號 |

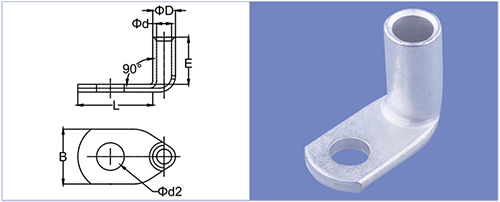

尺寸DIMENSIONS(mm) |
|||||
|
Φd 2 |
B |
L |
ΦD |
Φd |
E |
||
|
LYF10M6D90 |
LYF90°10-6 |
6.5 |
13 |
18 |
8 |
5 |
15 |
|
LYF10M8D90 |
LYF90°10-8 |
8.4 |
13.5 |
20.5 |
8 |
5 |
15 |
|
LYF16M6D90 |
LYF90°16-6 |
6.5 |
13 |
18 |
9 |
6 |
17 |
|
LYF16M8D90 |
LYF90°16-8 |
8.4 |
13.5 |
20.5 |
9 |
6 |
17 |
|
LYF25M6D90 |
LYF90°25-6 |
6.5 |
16 |
18 |
11 |
8 |
18.5 |
|
LYF25M8D90 |
LYF90°25-8 |
8.4 |
16 |
20.5 |
11 |
8 |
18.5 |
|
LYF25M10D90 |
LYF90°25-10 |
10.5 |
17 |
25 |
11 |
8 |
18.5 |
|
LYF35M6D90 |
LYF90°35-6 |
6.5 |
18 |
18 |
13 |
9 |
22.5 |
|
LYF35M8D90 |
LYF90°35-8 |
8.4 |
17 |
20.5 |
12 |
8.5 |
22.5 |
|
LYF35M10D90 |
LYF90°35-10 |
10.5 |
18 |
25 |
13 |
9 |
22.5 |
|
LYF50M6D90 |
LYF90°50-6 |
6.5 |
21 |
26 |
14.5 |
11 |
30.5 |
|
LYF50M8D90 |
LYF90°50-8 |
8.4 |
21 |
26 |
14.5 |
11 |
30.5 |
|
LYF50M10D90 |
LYF90°50-10 |
10.5 |
21 |
30 |
14.5 |
11 |
30.5 |
|
LYF50M12D90 |
LYF90°50-12 |
13 |
21 |
32 |
14.5 |
11 |
30.5 |
|
LYF70M6D90 |
LYF90°70-6 |
6.5 |
24 |
26 |
16.5 |
12 |
31.5 |
|
LYF70M8D90 |
LYF90°70-8 |
8.4 |
24 |
26 |
16.5 |
12 |
31.5 |
|
LYF70M10D90 |
LYF90°70-10 |
10.5 |
24 |
30 |
16.5 |
12 |
31.5 |
|
LYF70M12D90 |
LYF90°70-12 |
13 |
24 |
32 |
16.5 |
12 |
31.5 |
|
LYF95M8D90 |
LYF90°95-8 |
8.4 |
29 |
26 |
20 |
15 |
32.5 |
|
LYF95M10D90 |
LYF90°95-10 |
10.5 |
29 |
30 |
20 |
15 |
32.5 |
|
LYF95M12D90 |
LYF90°95-12 |
13 |
29 |
32 |
20 |
15 |
32.5 |
|
LYF95M16D90 |
LYF90°95-16 |
17 |
29 |
36 |
20 |
15 |
32.5 |
|
LYF120M10D90 |
LYF90°120-10 |
10.5 |
32 |
30 |
22 |
17 |
34.5 |
|
LYF120M12D90 |
LYF90°120-12 |
13 |
32 |
32 |
22 |
17 |
34.5 |
|
LYF120M16D90 |
LYF90°120-16 |
17 |
32 |
36 |
22 |
17 |
34.5 |
