PART NO. 規(guī)格/編碼 |
ITEM NO. 品名型號(hào) |

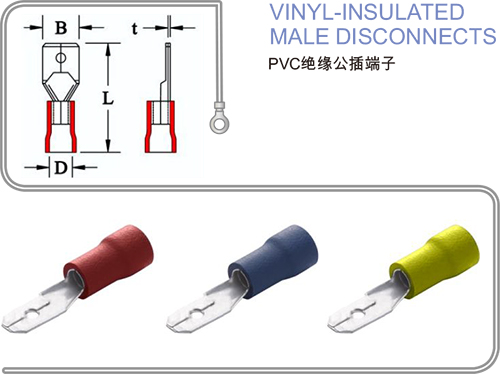

尺寸DIMENSIONS(mm) |
WIRE RANGE 電線范圍 A .W.G.mm2 |
||||
|
T A B SI Z E |
D |
B |
L |
t |
|||
|
VM1.25B110(5) |
VM1.25-110(5) |
2.8*0.5 |
3.6 |
2.9 |
21.5 |
0.25 |
22-16A.W.G. 0.5-1.5mm2 |
|
VM1.25B110(8) |
VM1.25-110(8) |
2.8*0.8 |
2.9 |
0.4 |
|||
|
VM1.25B187(5) |
VM1.25-187(5) |
4.8*0.5 |
4.8 |
0.25 |
|||
|
VM1.25B187(8) |
VM1.25-187(8) |
4.8*0.8 |
4.8 |
0.4 |
|||
|
VM1.25B250 |
VM1.25-250 |
6.4*0.8 |
6.3 |
||||
|
VM2B110(5) |
VM2-110(5) |
2.8*0.5 |
4.4 |
2.9 |
21.5 |
0.25 |
16-14A.W.G. 1.5-2.5mm2 |
|
VM2B110(8) |
VM2-110(8) |
2.8*0.8 |
2.9 |
0.4 |
|||
|
VM2B187(5) |
VM2-187(5) |
4.8*0.5 |
4.8 |
0.25 |
|||
|
VM2B187(8) |
VM2-187(8) |
4.8*0.8 |
4.8 |
0.4 |
|||
|
VM2B250 |
VM2-250 |
6.4*0.8 |
6.3 |
||||
|
VM5.5B110(5) |
VM5.5-110(5) |
2.8*0.5 |
5.4 |
2.9 |
23 |
0.25 |
12-10A.W.G. 4-6mm2 |
|
VM5.5B110(8) |
VM5.5-110(8) |
2.8*0.8 |
2.9 |
0.4 |
|||
|
VM5.5B187(5) |
VM5.5-187(5) |
4.8*0.5 |
4.8 |
0.25 |
|||
|
VM5.5B187(8) |
VM5.5-187(8) |
4.8*0.8 |
4.8 |
0.4 |
|||
|
VM5.5B250 |
VM5.5-250 |
6.4*0.8 |
6.3 |
||||
